OLE Hydrostrut Suspensions




* We can manufacture a hydrostrut to fit most makes and models of off-highway haulage trucks, including Unit Rig, Terex, CAT, Hitachi, Euclid, Liebherr, Komatsu, Dart, and more.
Improved Design

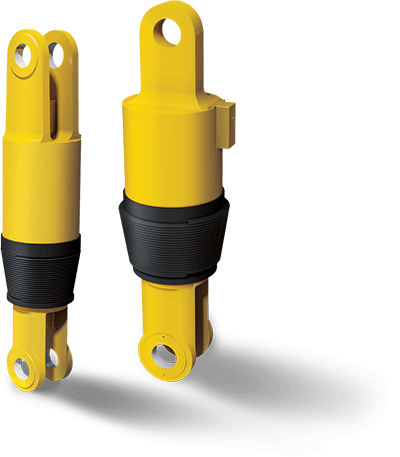

OLE offers its improved “Hydrostrut” designed front and rear suspension to replace existing rubber or silicone/neocon style suspensions. The hydrostrut design gives a superior, adjustable ride for longer service life with lower repair and maintenance costs. OLE’s low pressure simple design increases the life of the strut by reducing design failures!
With over 35 years of experience in design & manufacturing, OLE suspensions provide exceptional energy absorption on both upstroke & rebound resulting in less frame cracking and longer life to steering mechanisms, hubs, bearing & spindles.


Exclusive Designer

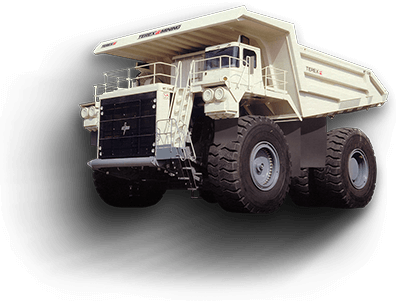

OLE is the exclusive designer and manufacturer of “Hydrostrut” front & rear suspensions for Unit Rig/Terex MT Series off highway trucks

- MT6300 (400 ton)
- MT5500 (360 ton)
- MT4400 (240 ton)
- MT4000 (240 ton)
- MT3700 (190-205 ton)
- MT3600 (170-190 ton)
- MT3300 (150 ton)
Features
- 100,000+ hours of proven service in Canadian and U.S. mines
- Protective Boot helps prevent rock damage & contaminants
- Lower cost than rubber, elastomer, silicon, or neocon struts
- High-Strength Manganese Bronze bushings
- Rated to -65ºF to +200ºF (-54ºC to +93ºC)
- Lubricated to boost operating life
- 10,000 hour or 2 year warranty
- Reduced Possibility of Leakage
- Nitrogen charging kit available
- Reduced Operating Pressure
- Simple, trouble-free design
- Longer Seal Life

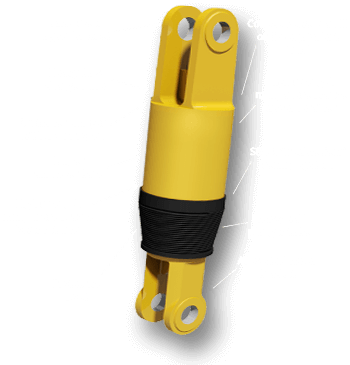

Typical OLE Hydrostrut
